Features
- Dynamic vibration (IEPE) sensor output
- Sensitivity:
- 780A, 780A-D2, 780A-IS: 100mV/g
- 780A-10: 10mV/g
- ±5% sensitivity tolerance
- 0.5 to 14,000Hz frequency response
- Hazardous area approvals:
- 780A: Non-approved
- 780A-10: Non-approved

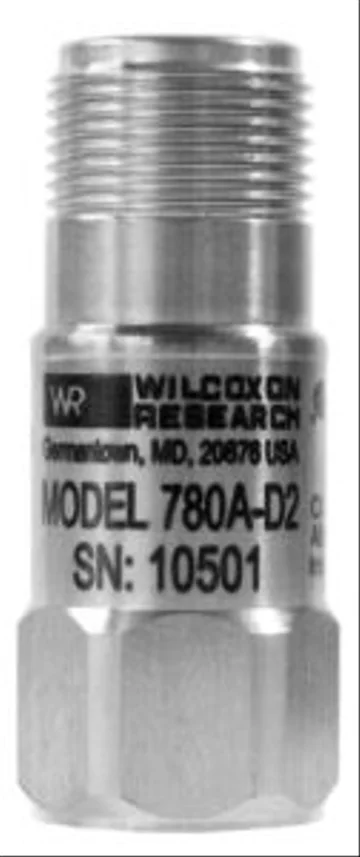

- 780A-D2: Class I, Div 2, Zone 2; ATEX II 3G Ex nA

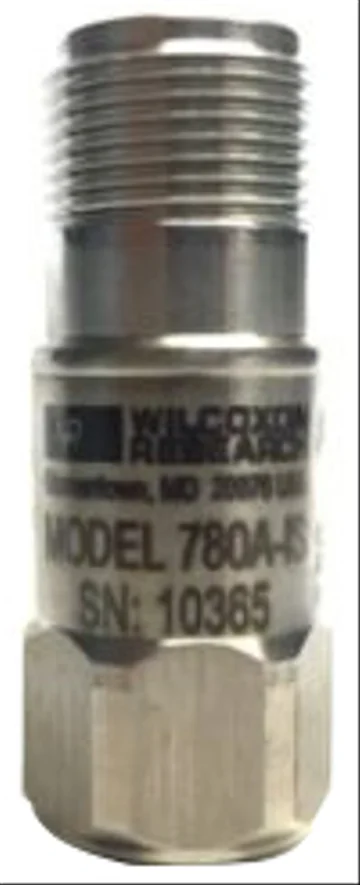

- 780A-IS: Class I,II,III, Div 1, Zone 0; ATEX II 1G Ex ia; IECEx Ga Ex ia
- PZT, shear sensing element design
- MIL-C-5015, 2-pin connector
- 80g peak FS range
- 30kHz resonance frequency
- 316L stainless steel construction
- SF6 mounting stud included
The Wilcoxon Sensing Technologies 780A series compact accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The 780A is case isolated, and has a 100mV/g or 10mV/g sensitivity, and ±5% sensitivity tolerance.
The 780A is API 670 compliant and is manufactured in an ISO 9001 facility.
