Features
- In-line oval gear technology meters offer fast and accurate fluid measurements for most oil applications
- Compatible with oils up to SAE140, automatic trans fluid, engine oil, gear oil, hydraulic oil, coolant, diesel, kerosene
- 1/2” or 3/4” port sizes; available with NPT or BSP threads
- Flow ranges: 1 to 30L/min (1/2” port) to 3 to 80L/min (3/4” port)
- Accuracy up to ±0.5%
- Working Temperature from -14° to 55°C
- Maximum working pressure to 1500 psi (3/4” port; to 1000 psi with 1/2” port)
- Wetted materials: acetal, aluminum, Nitrile rubber, mild steel
- Available with digital or mechanical displays or pulse output
The Macnaught IM series flow meter is an inline oval gear meter designed specifically to measure lubricating oils. The IM series is compatible with oils up to
SAE140, automatic trans fluid, engine oil, gear oil, hydraulic oil, coolant, diesel, or kerosene. Available with two port sizes, the IM series has a flow range
or 1 to 30L/min with 1/2" port or 3 to 80L/min with the 3/4" port. BSP or NPT threads are available for the ports. The rugged body can withstand working
pressures of up to 1000 psi for the smaller meter and 1500 psi for the larger. The IM series has a working temperature range from -14° to 55°C.

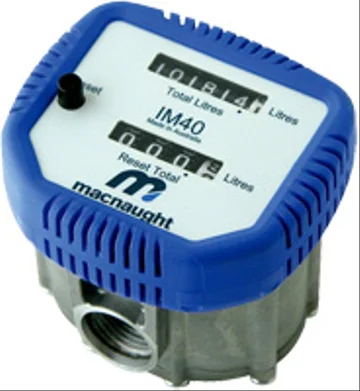

The Macnaught IM series is also available with a choice of mechanical register, electronic display or pulse output. The mechanical register option includes a
4-digit resettable batch totalizer as well as a 7-digit accumulative totalizer. This model is capable of ±1% accuracy. The electronic display option includes
a 6-digit digital display which includes a resettable batch totalizer and non-resettable totalizer. This model is capable of ±0.5% accuracy. The pulse output model
includes a one-meter fly lead with reed switch output. The pulse output model can achieve ±0.5% accuracy.
