Features
- Flow ranges from 0.13 GPH to 317 GPM
- Up to ±0.5% accuracy (±1.0% for MX06F, MX09F)
- Cast aluminum meter body
- Bearingless PPS Rotors
- Viton seals
- Temperature Range: -40 to 176˚F
- Optional 12 or 17mm LCD display
- Output options: 4-20mA (passive), Transistor, Pulse Output, Alarm
- BSP, NPT or flanged process connections
- CE compliant
- 2 Year Warranty
- Robust Design
- Suitable for use in the harshest outdoor environments

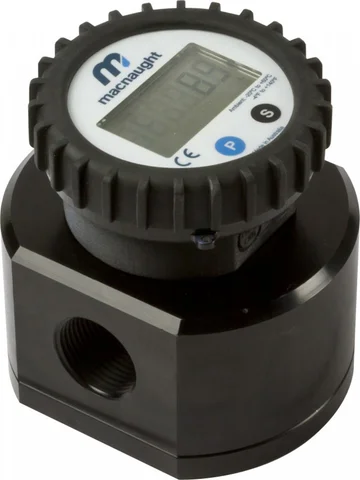

Macnaught MX Series fuel and oil flow meters are positive displacement oval gear flowmeters that are optimized for fuel and oil measurement applications.
Macnaught Fuel and Oil meters are constructed utilizing a robust cast aluminum body suitable for use in the harshest environments. Their bearing-less PTFE/PPS
rotors provide exceptionally low pressure drop and can even be used in gravity fed applications. This unique rotor design ensures minimal wear resulting in many
years of reliable service. This approach has proven over time to provide consistently accurate flow measurement that is not affected by variations in temperature,
viscosity, or pressure.
Another benefit of Macnaught's unique rotor design is simplicity of repair. With only 2 moving parts, the meters are simple to repair, require minimal repair parts
stock, and can even be repaired inline, resulting in less downtime.
Oval Gear flowmeters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch sizes,
viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, no straight piping runs
are required, so they can be used in installations where space is limited without effecting performance.
With a range of display, output and process connection options, Macnaught MX Series fuel and oil flow meters are the perfect choice for a variety of applications including:
Service and fueling trucks
Fuel depots
Portable fueling systems
Bio-diesel blending and production
Lubricant blending and dispensing
Hydraulic fluid dispensing and test stands
Boiler and generator fuel consumption
Fuel consumption for mining, construction, and military vehicles
Bitumen/asphalt production
