Features
- Flow ranges from 0.13 GPH to 194 GPM
- Up to ±0.5% accuracy (±1.0% for MX06P, MX09P)
- Stainless steel meter body
- Bearingless PPS Rotors
- High temperature and high viscosity rotors available
- FEP/PTFE encapsulated seals
- Temperature Range: -40 to 176˚F
- Optional 12 or 17mm LCD display
- Outputs options: 4-20mA (passive), Transistor, Pulse Output, Alarm
- BSP, NPT or flanged process connections
- CE compliant
- 2 Year Warranty
- Robust Design
- Suitable for use in the harshest outdoor environments

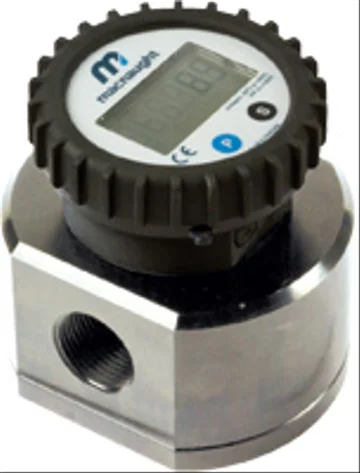

Macnaught MX Series industrial meters are positive displacement oval gear flowmeters that are designed to cover a broad range of industrial fluid measurement
applications. With versions covering high temperature, high pressure, as well as hazardous locations, there is a Macnaught Industrial flowmeter to fit virtually
any industrial liquid measurement requirement.
Macnaught industrial meters are constructed utilizing a robust cast aluminum body suitable for use in the harshest environments. Their bearing-less PTFE/PPS rotors
provide exceptionally low pressure drop and can even be used in gravity fed applications. This unique rotor design ensures minimal wear resulting in many years of
reliable service. This approach has proven over time to provide consistently accurate flow measurement that is not affected by variations in temperature, viscosity,
or pressure.
Another benefit of Macnaught's unique rotor design is simplicity of repair. With only 2 moving parts, the meters are simple to repair, require minimal repair parts
stock, and can even be repaired inline, resulting in less downtime.
Oval Gear flowmeters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch
sizes, viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, no straight
piping runs are required, so they can be used in installations where space is limited without effecting performance.
With a range of display, output and process connection options, Macnaught MX Series industrial flow meters are the perfect choice for a variety of applications including:
Chemical batching
Additive injection
Hydraulic test stands
High temperature chemical processes
High pressure chemical processes
Food and beverage batch processes
Ethanol blending and production
Pulp and paper
