Features
- Dynamic vibration (IEPE) sensor output
- Grounding:
- 726: Case grounded, side connector
- 726T: Base isolated, top connector
- 100mV/g sensitivity
- ±5% sensitivity tolerance
- 80g peak acceleration range
- Frequency response:
- ±5%: 2 to 10,000Hz
- ±10%: 1 to 12,000Hz
- ±3 dB: 0.6 to 15,000Hz
- 32kHz resonance frequency
- 100Ω max output impedance
- 500g peak vibration limit
- 5,000g peak shock limit

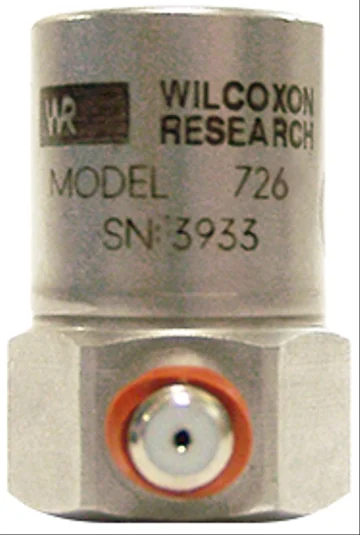

The Wilcoxon Sensing Technologies 726 series compact piezoelectric accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 10-32 tapped hole for mounting with SF1 stud (included). It has a 10-32 coaxial output connector and R1 mating connector. The 726 is case grounded, and the 726T is base isolated.
The 726 series accelerometer is manufactured in an ISO 9001 facility.
