Features
- Dynamic vibration (IEPE) sensor output
- Grounding:
- 728A: Case grounded, side connector
- 728T: Base isolated, top connector
- 500mV/g sensitivity
- ±5% sensitivity tolerance
- 15g peak acceleration range
- Frequency response:
- ±5%: 3 to 5,000Hz
- ±3 dB: 1 to 10,000Hz
- 24kHz resonance frequency
- 100Ω max output impedance
- 250g peak vibration limit
- 2,500g peak shock limit

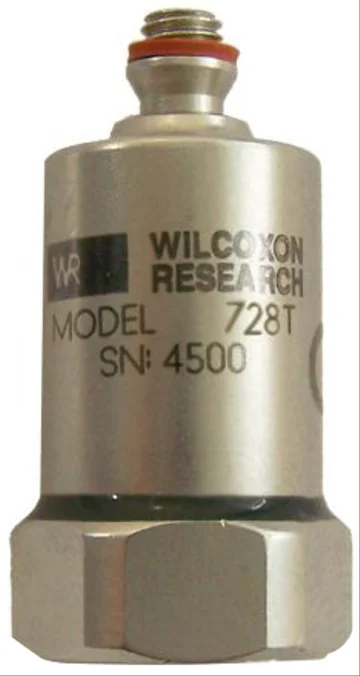

The Wilcoxon Sensing Technologies 728 series compact high sensitivity accelerometer is designed for long-term, reliable use. It is constructed with stainless steel and features a 10-32 tapped hole for mounting with SF1 stud (included). It has a 10-32 coaxial output connector and R1 mating connector. The 728A is case grounded, and the 728T is base isolated.
The 728 series accelerometer is manufactured in an ISO 9001 facility.
