Features
- Dynamic vibration (IEPE) sensor output
- Sensitivity:
- ±5% sensitivity tolerance
- Peak acceleration range:
- 1% amplitude nonlinearity
- Frequency response:
- 799LF:
- ±5%: 0.3 to 1,200Hz
- ±10%: 0.2 to 1,600Hz
- ±3 dB: 0.1 to 2,500Hz
- 799M:
- ±5%: 0.3 to 1,200Hz
- ±10%: 0.2 to 1,600Hz
- ±3 dB: 0.1 to 2,500Hz
- 18kHz resonance frequency
- 400Ω max output impedance
- 250g peak vibration limit
- 5,000g peak shock limit
- Hermetic sealing
- MIL-C-5015 2-pin connector

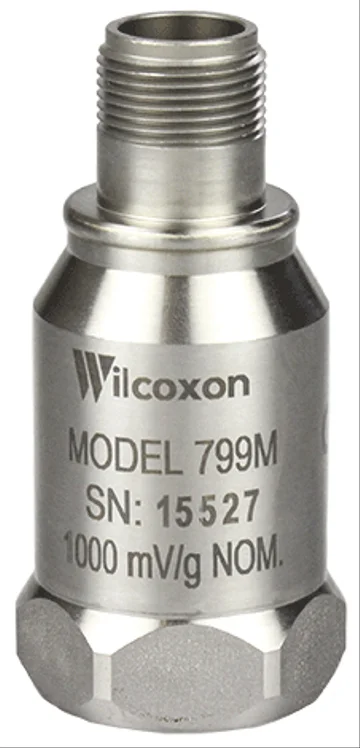

The Wilcoxon Sensing Technologies 799 series ultra-low noise filtered accelerometer is designed for long-term, reliable use. The 799LF has 500mV/g sensitivity and ±5% sensitivity tolerance. The 799M has 1V/g sensitivity and ±5% sensitivity tolerance. Both models have ultra low-noise electronics for clear signals at very low vibration levels and are low pass filtered to eliminate high frequencies.
The 799 is constructed with 316L stainless steel, and is hermetically sealed. It features a 1/4-28 tapped hole for mounting and a MIL-C-5015 2-pin output connector. The 799 is case isolated and internally shielded. It is manufactured in an ISO 9001 facility.
